ARB Summit Bullbar Toyota Hilux 2020 on

ARB SUMMIT BULL BAR

The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.

Available for the wide body Toyota HiLux 08/20 SR/SR5 (06/20 build), Summit bars are winch compatible and provide next-generation protection and styling for your vehicle. Laser-cut holes for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED clearance and indicator light assembly is included as standard.

Supplied in a durable matte black powder coat finish, colour coding is available as an option for a fully integrated look.

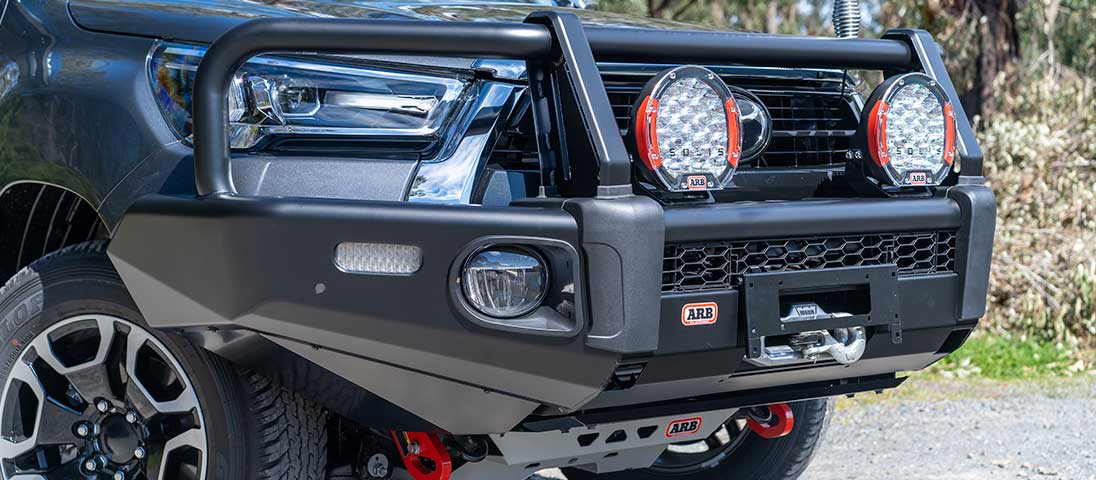

Note: Bar shown with optional fog light kit.

FEATURES

Vehicle specific design for the wide body Toyota HiLux SR and SR5 from 08/20 (06/20 build)

Durable steel construction for maximum protection

Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle

30mm edge radius on wings and centre section

Engineered, airbag compatible mounting system secures to chassis via high tensile bolts

Split pan design for maximum strength and airflow

3 piece grille design for split pan

Extensive under protection panels on the centre and either side

Pressed form top pan and aluminium (powder coated black) winch cover panel

Twin ARB JACK or Hi-Lift jack points located below each buffer for optimum strength

Durable two piece buffers

Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb

Provision to accommodate ARB Intensity LEDs and a range of IPF and Bushranger driving lights

Provision for ARB fog lights (additional parts required)

Provision for optional ARB fog light cover

Provision for optional Summit Roller Fairlead cover

Provision for OE front parking sensors

Includes ARB LED indicator & clearance light

Two antenna mounts located on the top of the centre tube

Corrosion-resistant primer

Finished in a matte black powder coat, colour coding is available as an option for a fully integrated look
