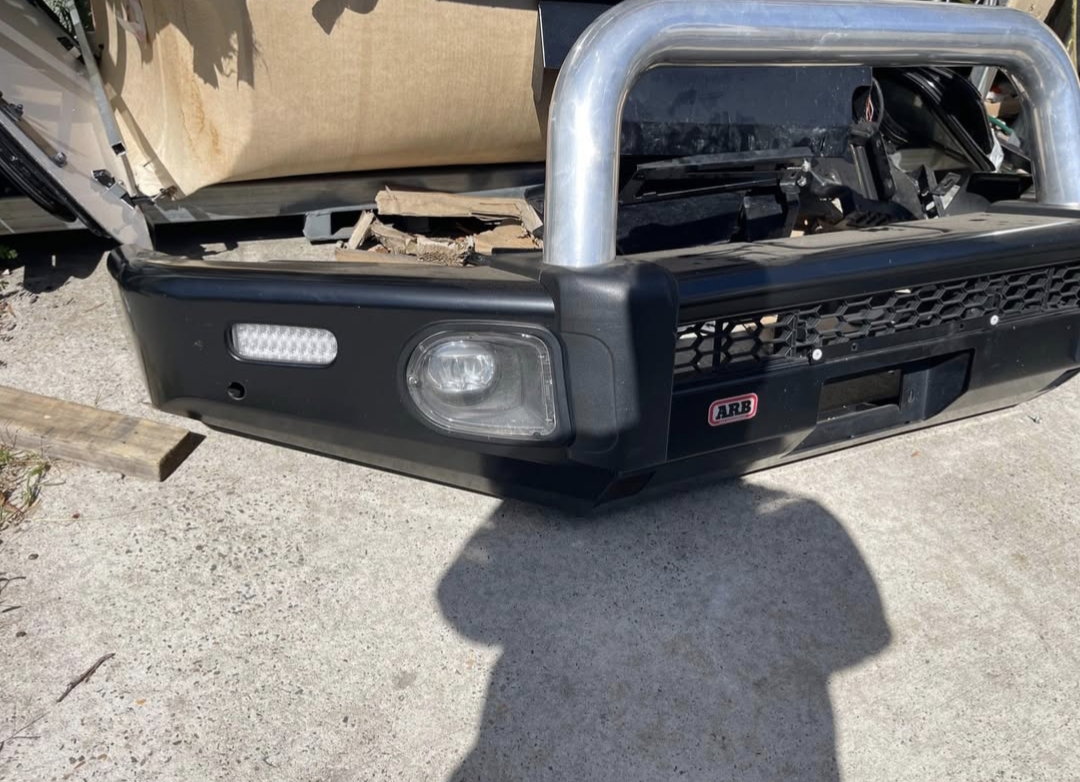

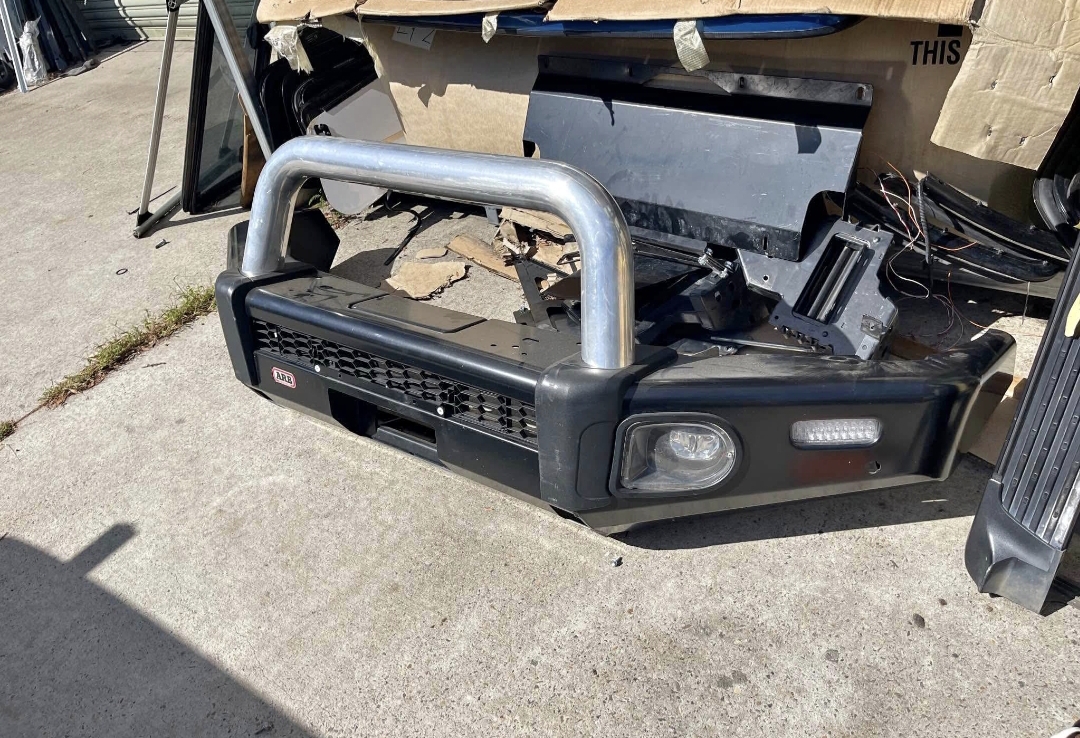

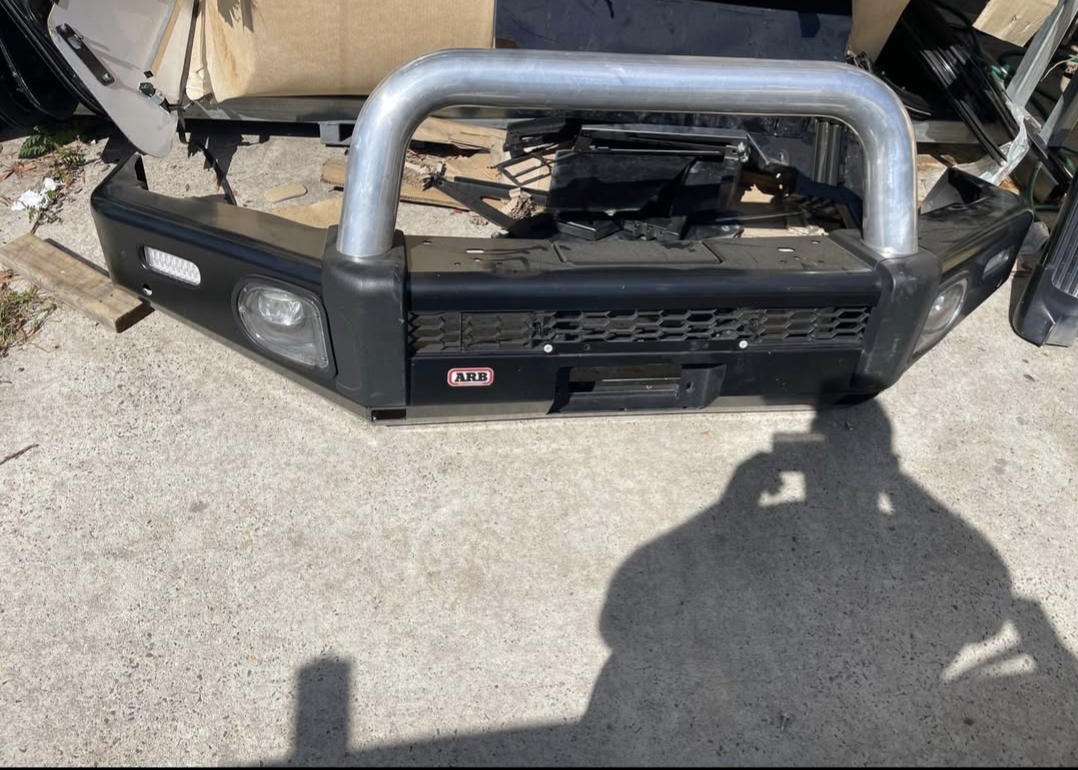

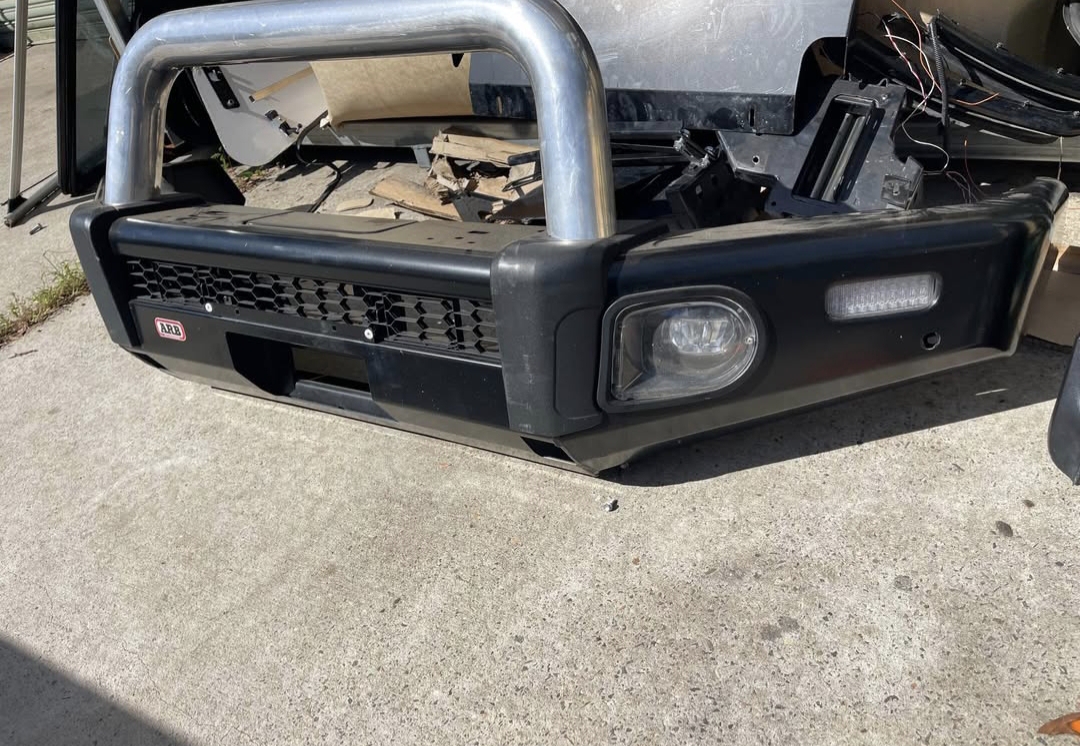

USED ARB Summit Sahara Bullbar Ford Ranger PX III 2019- 2022

ARB Summit Sahara Bullbar Ford Ranger PX III 2019- 2022

Request Price

Please Note if Item is on back order it can take 8-10 weeks for it to arrive

100% Secure Checkout

Shipping or Local Pickup

Description Additional information Brand

Description

ARB SUMMIT SAHARA BAR

Available for Ford Ranger PX MKIII XLS, XLT and Wildtrak models.

Similar to the Summit bull bar, the Summit Sahara bar offers a stylish alternative that complements the vehicle design, whilst retaining many of the strength and protection features.

Offering significantly greater protection than the factory bumper, the Summit Sahara bar is available with or without the polished centre tube, can be colour coded and can accommodate a selection of Warn, Magnum and Bushranger low mount winches.

The new bar also includes provision for original equipment front parking sensors as standard. Blanking plugs are included for those vehicles not equipped with OE sensors.

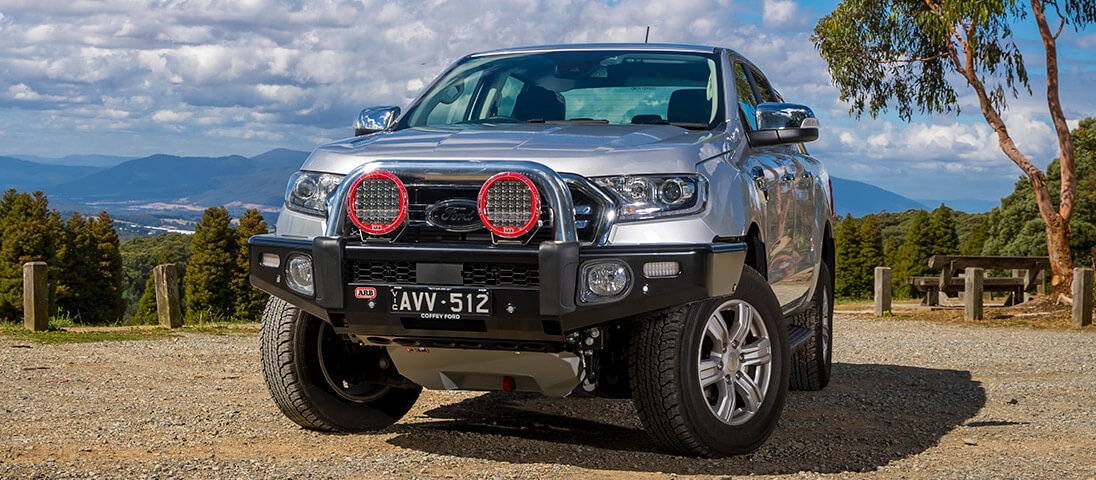

Note: Bar shown with optional fog light kit.

FEATURES

Vehicle specific design to complement the Ford Ranger PXIII

Durable steel construction for maximum protection

Incorporates ARB’s renowned multi fold upswept and tapered wing design for optimum strength and approach angle

Split pan design for maximum strength and airflow

Extensive under protection panels on centre and either side, the centre panel includes additional laser cut holes for additional airflow

Superbly engineered, air bag compatible mounting system secures to chassis via high tensile bolts

Combination style bar to suit both winch and non-winch applications

Will accommodate Warn, Magnum, Bushranger and Smittybilt low mount model electric winches up to 10,000lb

Includes provision for OE front parking sensors as standard, blanking plugs are supplied if no OE parking sensors are fitted

Twin Hi-Lift jacking points located in the pan of the bar

Provision to accommodate ARB Intensity LED, and a range of IPF and Bushranger driving lights

Provision for optional ARB fog light kit

Includes ARB’s LED, indicator and clearance light

Durable two piece buffers including cover strap intersection caps

Two aerial brackets located in the wings of the bar

Corrosion resistant primer

Supplied in a durable black powder coat finish with the added option of colour coding to individual vehicles

SUMMIT SAHARA TUBE WITH LED LIGHT BAR

Available for the Ford Ranger PXIII and finished in a stealthy Integrit™ textured black powder coat, the Summit Sahara tube with Light Bar features 10x integrated 20” OSRAM LED lights to illuminate the road ahead in a variety of driving conditions.

The tube’s aluminium body and high-pressure die-cast aluminium end caps enable heat dissipation for added longevity to the LEDs, while a light tint added to the polycarbonate lens ensures a non-obtrusive look. Manufactured from extruded aluminium for superior strength, the light bar’s turned reflectors create a defined beamline that’s specifically designed as a spot/flood combination to complement the OE headlight light spread; providing up to 445m @ 1 Lux and up to 44m spread of light.

Note: image is for illustrative purposes only.

FEATURES

Unique reflector design to provide good distance and width for highway driving

Virtually indestructible hardened polycarbonate lens

Extruded aluminium body finished in black powder coat

Comes pre-assembled in Summit Sahara tube. Vertical adjustment provided via the rear of the tube

Additional openings allow airflow over and around the LED light bar

Over and under voltage protection

Reverse polarity protection

Breather with pressure-tested seal

Vibration and UV tested

Thermal management

Dust and waterproof to IP68

Protected against radio frequency (RFI) and electromagnetic (EMC) interference

Tube finished in Integrit™ textured black powder coat

Requires ARB wiring loom (3500810) for fitmen
